STN Negative Blue LED Custom LCD Module , COG Resolution 128x64 LCD Module

Name: STN Negative Blue LED Custom LCD Module COG Resolution 128x64 LCD Module
Brand: Elite Tree
Price: 1 USD

Buy cheap STN Negative Blue LED Custom LCD Module , COG Resolution 128x64 LCD Module product

Brand Name : Elite Tree

Model Number : ET12864G16

Certification : ISO9001:2015 / ISO14001

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100Kpcs~ per month

Delivery Time : 5days for sample and 20-25 days for mass production

Packaging Details : In anti-statics bag packed in carton or according to the customer's requirement

Display Type : COG STN LCD Display Module Screen

Driving Method : 1/65Duty, 1/9 Bias

Driver IC : ST7565

Interface : Parallel

Backlight : LED White (Optional)

Contact Now

LCD Module COG 128*64 Resolution LCD Display Modules STN Negative with Blue LED

LCD Display Module

Product Information

Display Type	COG STN Display
Outline dimension	89.90mm * 49.90mm * 6.00mm
Viewing Area	70.10mm * 36.60 mm
Interface	Parallel
Power supply(typ)	5.0V
Driver IC	ST7565
Backlight	White (Optional)
Viewing Angle	6 O'clock
Operating temp	-20ºc~70ºc
Storage temperature	-30ºc~80ºc
If accept customized	Yes
RoHS compliance	Yes

Our advantages

1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

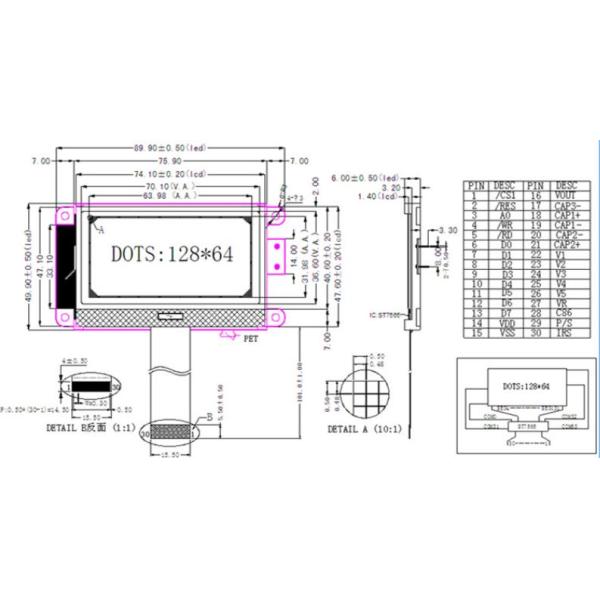

Product Drawing

STN Negative Blue LED Custom LCD Module , COG Resolution 128x64 LCD Module
